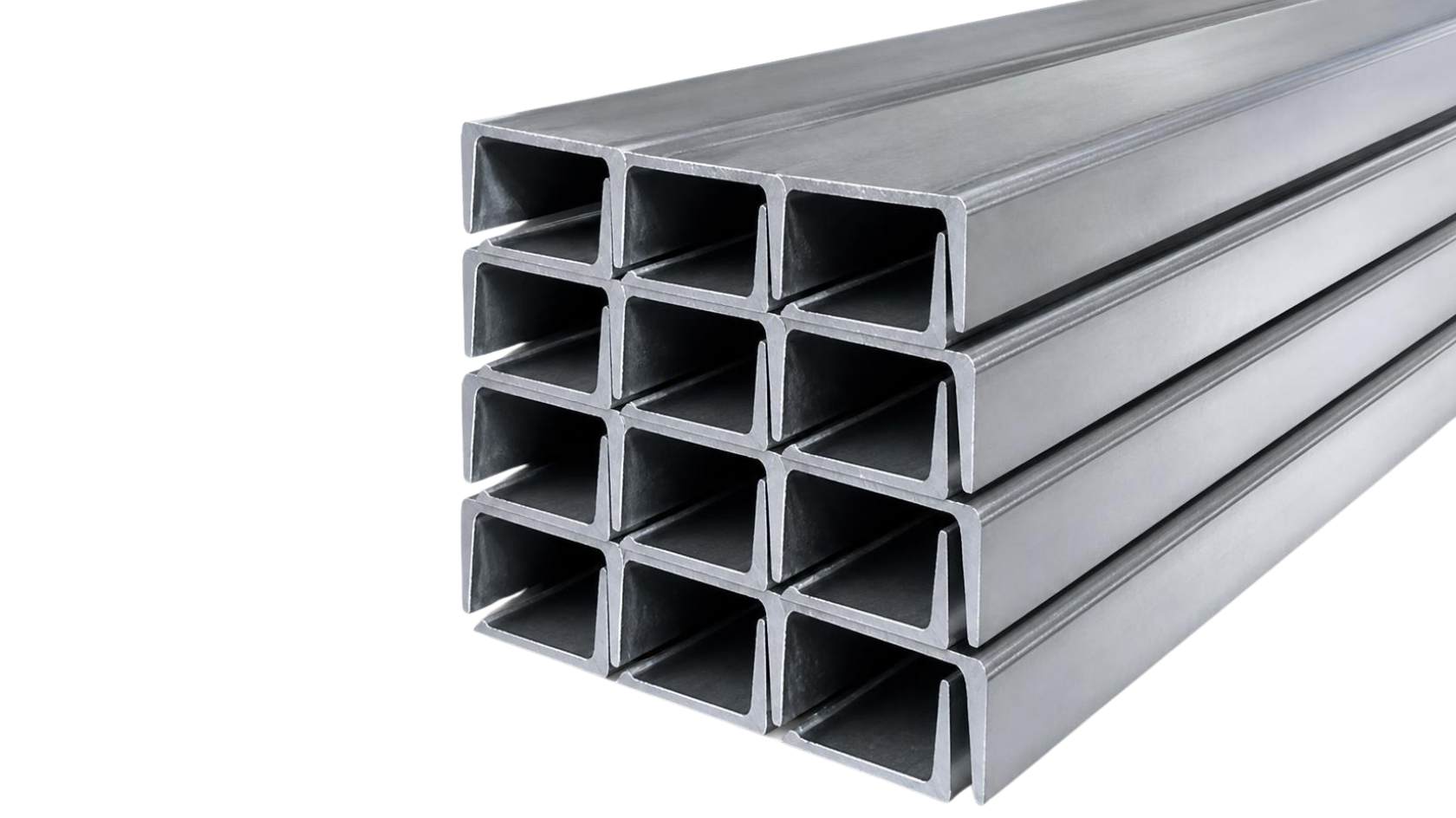

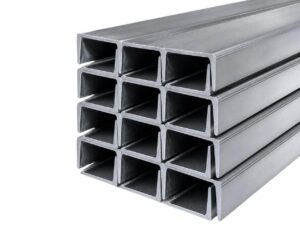

Mild Steel Channel Supplier in Karachi
Naeem Enterprise supplies mild steel C-channel (UPN shape) in Karachi for structural,
industrial, and fabrication work. We have stocked channel at our Ireland Road yard since 1979
and supply directly to contractors, fabricators, and industrial buyers.
MS Channel Size & Weight Chart
| Size (Inches) | No. | Weight (kg/ft) |
|---|---|---|
| 2 3/4 × 1 1/4 | 5000 | 1.000 |
| 3 × 1 1/2 LD | 5500 | 1.500 |
| 3 × 1 1/2 HD | 6900 | 2.200 |
| 4 × 2 | 6150 | 2.000 |
| 4 × 2 LD | 6200 | 2.500 |
| 4 × 2 HD | 6300 | 3.100 |
| 5 × 2 LD | 6400 | 3.600 |
| 5 × 2 1/2 LD | 6450 | 4.200 |
| 5 × 2 1/2 HD | 6500 | 4.800 |
| 6 × 3 LD | 6550 | 5.300 |
| 6 × 3 HD | 6600 | 6.300 |
| 7 × 3 LD | 6700 | 4.900 |
| 7 × 3 HD | 6750 | 6.700 |
| 8 × 3 1/2 | 6800 | 8.000 |
| 8 5/8 × 3 1/8 | 7000 | 8.200 |
| 10 × 3 LD | 7050 | 8.500 |
| 10 × 3 HD | 7100 | 10.000 |
| 12 × 4 | 7300 | 14.300 |
LD and HD — What’s the Difference?
LD means Light Duty and HD means Heavy Duty. For the same
nominal size, heavy duty channel has a thicker web and flanges, weighs more per foot, and
carries more load. If your drawing does not specify, tell us the span and load and we will
advise which is suitable.
Common Uses
Structural beams and columns, roof purlins, truck and trailer chassis, machine bases and
frames, door and window frames, industrial racking and shelving, staircase stringers, and
support brackets.
Why C-Channel
The channel section carries load well along its length while staying lighter than a solid
beam. It is commonly used where a full I-beam would be excessive but an angle would be too
light for the job.
Cutting & Fabrication
We cut channel to your required length in-house. Drilling, welding, and complete structural
fabrication handled by our own team, so you do not need to arrange a separate fabricator.
Galvanizing available for channel that will be exposed to weather.
Stock & Delivery
All sizes listed above are kept in stock, so there is no waiting for material. Same-day
quotation, delivery across Karachi, and dispatch to project sites nationwide.
Get a Quotation
Send us your size, length, and quantity on WhatsApp and we will send a quotation the same
day. For cutting or fabrication, share your drawing and we will quote the complete job.
